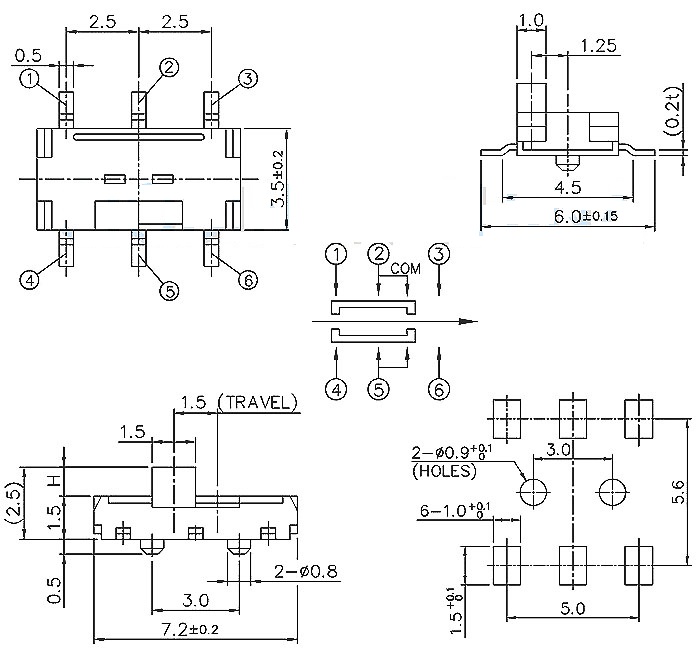

| 外形尺寸：7mm*3.5mm*1.5mm |
| 参数配置 ：1mm 2mm(SMT) |
Typical Specifications
1.Rating : DC4V 0.3A
2.Circuit : 2C - 3P
3.Timing : NON-SHORTING
4.Travel : 1.5±0.1mm
5.Contact Resistance : 70m?Max.
6.Operating Force :
*a → b, b → a : 200±150gf
7.Operating Life : 10,000cycles |
|
|
